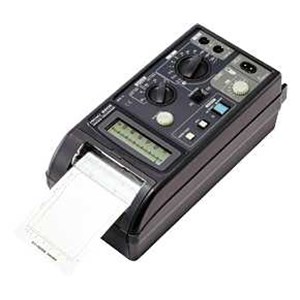

HIOKI 8205-10 MICRO HiCORDER

Successor to the long-popular MICRO HiCORDER 8202 True RMS Voltage and Current Recorders with Multimeter Operability! The MICRO HiCORDER 8205-10 incorporate the latest technology in HIOKI's best selling MICRO HiCORDER 8200 series. Maintaining the operational simplicity of an analog multimeter, these data recorders offer easy to use features such as : - Direct current measurement of up to 1000A - Fast LCD level meter vs. a stylus to quickly display the measured level - True RMS rectification system to accurately read distorted waveforms - Sampling rate of 100 samples/second with selectable chart speeds - The 8205-10 has one channel for recording either AC/DC voltage or AC current. Basic specifications : Measurement ranges : DC /AC Voltage: 0.1 V to 500 V f.s. 12 ranges AC Current: 10 A to 100 A AC 4 ranges (with optional CLAMP ON SENSOR 9650) 10 A to 500 A AC 6 ranges (with optional CLAMP ON SENSOR 9651) 10 A to 1000 A AC 7 ranges (with optional CLAMP ON SENSOR 9668) Sampling period : 10 ms Frequency characteristic : AC/DC voltage range: +0.5 dB to -3 dB from 20 Hz to 30 kHz. AC current range: Frequency characteristic is determind by the clamp sensor. Paper feed speed : 20 cm/minute to 2 cm/hour, 5 ranges Number of input channels : 1 channel AC or DC voltage, or 1 channel AC current (Simultaneous recording not available, one channel may be either type, input is voltage isolated.) Accuracy : Voltage: ±2 % f.s. (ACV/45 Hz to 66 Hz), Current: ±3.53 % f.s. (used with CLAMP ON SENSOR 9651 / option, AC 500 A range) Power supply : 100 to 240 V AC (50/60 Hz) or 9.5 to 14 V DC, 2 way Dimensions, mass : 250 mm(9.4 in)W × 122 mm(4.8 in)H × 93.5 mm(3.66 in)D, 1.2 kg (42.33 oz) Accessories : Recording paper 9235 (1 roll), roll paper holder (2), Power cord (1), CONNECTION CORD 9257 (1), CARRYING CASE 9344 (1)
